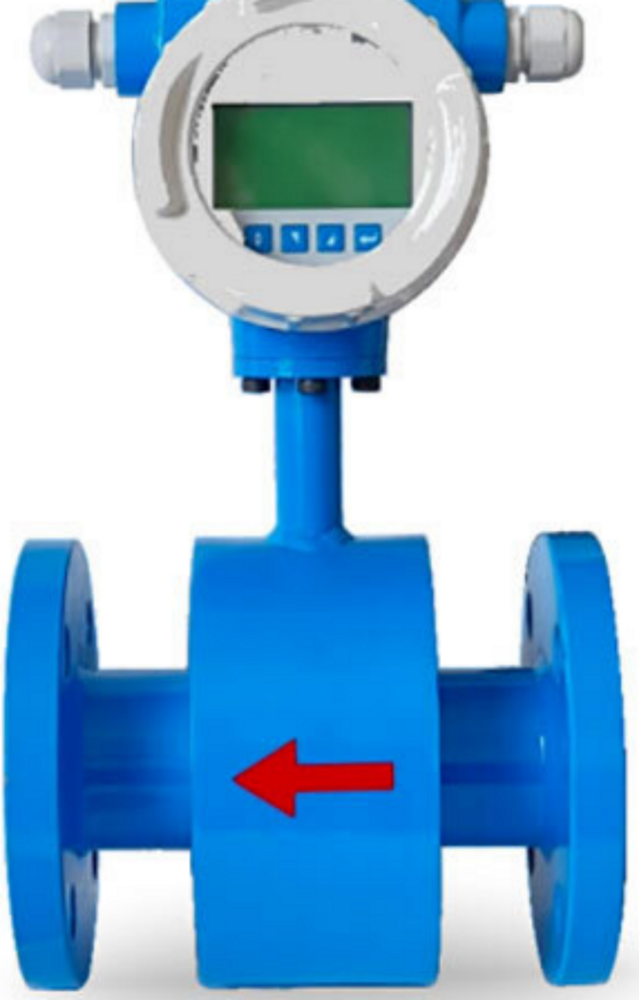

ELECTROMAGNETIC FLOW METER

ELECTROMAGNETIC FLOW METER Specification

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Parameters
Media	Liquids (Conductive)
Nominal dia (mm)	15 to 3000
Working pressure	10, 16, 25, 40 (Kg/cm2)
Working Temperature	150 deg C for PTFE Lining & 85 deg C for Rubber Lining
Electrode material	SS 316L Std.* HASTALLOY C PLATINUM TITANIUM TENTALUM
Sensor Lining	Std. Rubber*/PTFE
Display Version	Integral/Remote
Measuring Tube material	SS 304 Std.*
Sensor housing material	Std. CS* Ss304 Ss316 optional
End connection	Flange/Wafer/Tri-clamp/SMS
Flange standard	ASA 150# ANSI 150 PN10 PN16
Measuring range	0.2 to 12m/sec. Bidirectional
Accuracy % of measured value	-/+ 0.5% (-/+ 0.2% consult Factory)
Conductivity	Liquids (Conductive)
Repeatability	>5 us/cm
Display	-/+ 0.2% of Span
Display units	GRAPHIC DISPLAY/16X2 LINE DISPLAY
Output	4-20 mA & RS485
Power Supply Options	85-260 V AC 24V DC Battery Operated
Protection Class for Sensor	Std. IP 65 IP67 IP68 optional
Protection Class for Transmitter	Std. IP67*
Cable length for Remote	Std. 3m
Installation	Inline Flanged Type
